Features

·Output Power

BTL, 2ⅹ30W, 24V/8Ω, continuous

BTL, 2ⅹ25W, 16V/4Ω, continuous

BTL, 2ⅹ40W, 18V/4Ω, peak value

PBTL, 80W, 24V/4Ω, continuous

・4.5V-26V wide voltage input range ・More than 90% efficiency without heat sink ・Stereo analog differential input

・Programmable power limit, and AGC function

・Over-temperature limiting function

・Output short circuit, over current shutdown function

・Undervoltage protection function

・Lead-free and halogen-free package, TSSOP28-PP

Overview

SC3116 is a high-efficiency Class D audio power amplifier. In BTL mode, it can provide 2*30W/8Ω power output; in PBTL mode, it can provide 80W/4Ω power output.

SC3116 has an over-temperature limiting function. When the internal temperature of the chip reaches the over-temperature limiting point, SC3116 automatically reduces the gain so that the IC can play continuously without interruption. In addition, SC3116 has a power limiting function, one is the amplitude limiting function, which limits a certain output amplitude at the output end to prevent damage to the speaker. The other is the AGC anti-clipping distortion function. When turned on, it can effectively improve the sound-breaking distortion caused by excessive input amplitude or reduced power supply voltage.

In addition, SC3116 has a built-in shutdown function to minimize the standby current. It also integrates functions such as output overcurrent protection, on-chip over-temperature protection and power supply under-voltage abnormal protection.

Application

·Bluetooth Speaker
・Portable speakers

・2.1 channel speaker

·loudspeaker

・Trolley speaker

・LCD TV/Monitor

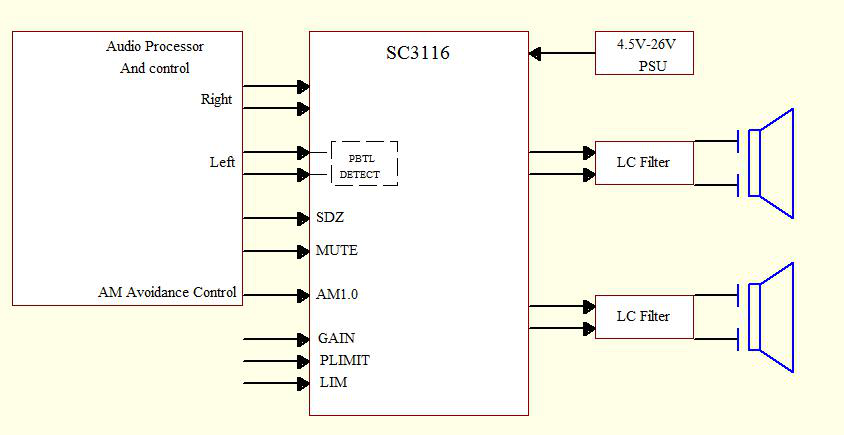

Typical application diagram
